Precision Stages & Actuators
Precision Actuators/Stages are designed to meet higher specifications of positioning (accuracy & repeatability) as well as smoothness of travel (roll, pitch & yaw). Typically these stages are used in applications where positioning not only matters but is critical to application success.
| Drivetrain | Stroke | Speed | Repeatability | Cost | Applications |
|---|---|---|---|---|---|
| Rolled Ball-Screw | Medium to Long | Medium | Medium (±0.01 mm) | Moderate | General automation, CNC machines |
| Ground Ball-Screw | Medium to Long | Medium | High (±0.003 mm) | High | Precision machinery, robotics |
| Rack and Pinion | Long (unlimited) | High | Medium (±0.01 mm) | Moderate | Heavy machinery, CNC routers |
| Acme Screw | Short to Medium | Low | Low (±0.1 mm) | Low | Manual machinery, jacks |
| Machine Screw | Short to Medium | Low | Low (±0.1 mm) | Low | Light-duty applications |
| Belt/Pulley | Long (unlimited) | High | Medium (±0.05 mm) | Low to Moderate | Conveyor systems, 3D printers |
| Linear Motor | Medium to Long | Very High | Very High (±0.001 mm) | Very High | High-speed automation, precision positioning |

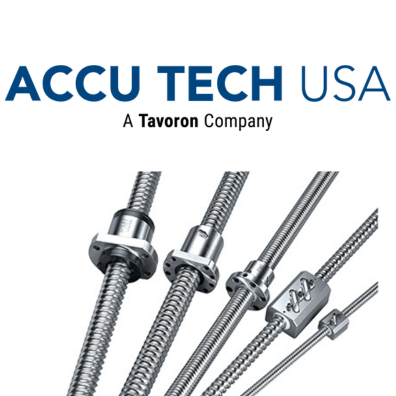

Accu Tech – Linear Actuators

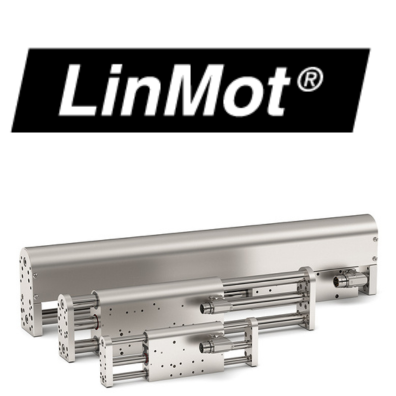

LinMot – Linear Actuators (DM01)
LinMot – Linear Actuators (F01/E01)

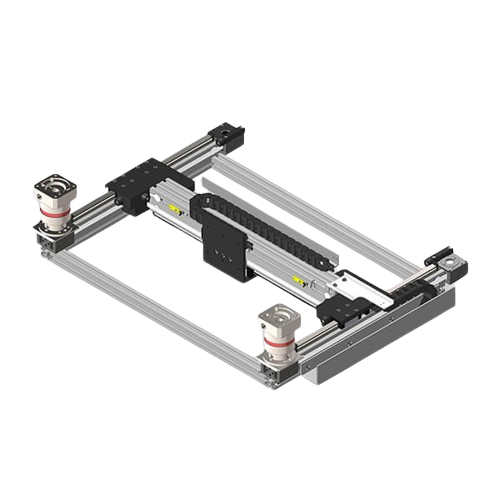

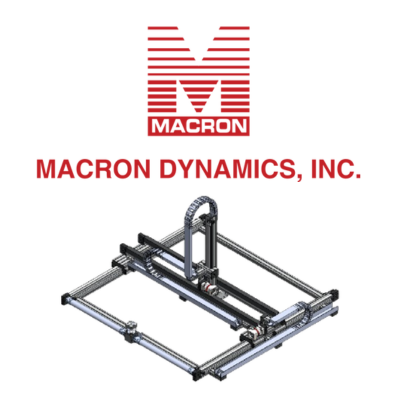

Macron Dynamics – 7th axis Robot Slides
Macron Dynamics – Linear Actuators

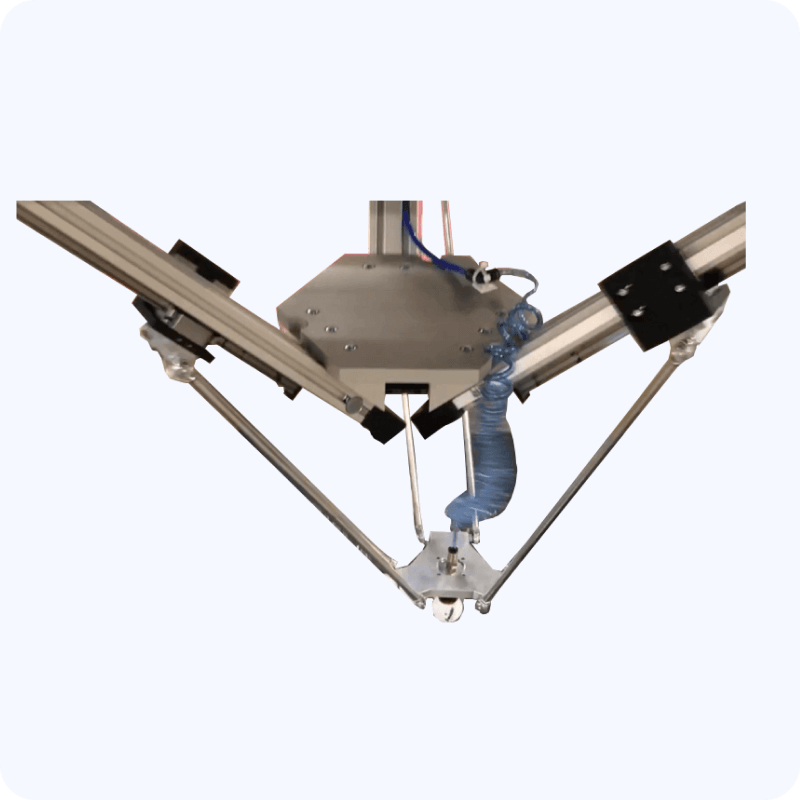

ModuSystems – Linear Motion
NTN Automation – Programmable Actuators
NTN Automation – Rodless Actuators

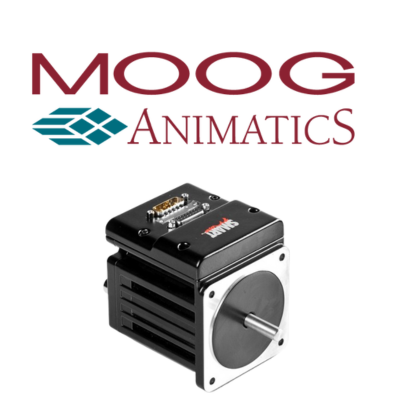

Class 5 Motors
Class 6 Motors
A low-profile Flat Belt Conveyor is a type of conveyor system used for transporting various goods or materials. Unlike traditional conveyors, which often have bulky frames and elevated structures, a low-profile design features a compact and streamlined Aluminum construction. This type of …
A low-profile Flat Belt Conveyor is a type of conveyor system used for transporting various goods or materials. Unlike traditional conveyors, which often have bulky frames and elevated structures, a low-profile design features a compact and streamlined Aluminum construction. This type of …
A Timing Belt Conveyor is a specialized type of conveyor system that uses a toothed Timing Belt to move items along a predetermined path. It’s designed to ensure precise and synchronous movement of products, making it particularly suitable for applications that …
Flat Top Chain Conveyors are material handling systems used to transport a wide range of products or goods within industrial settings. These conveyors consist of a flat, continuous chain that runs along a series of sprockets to move items from one …
Roller Chain Conveyors are widely used in industries to move heavy loads efficiently. They employ standard Roller Chains (#40, #50, #60) to facilitate product movement, showcasing durability and reliability in harsh environments. Notable features include their ability to handle bulky items, adapt …
What is IP Rating?
IP (Ingress Protection) is the specification used for determining the level of protection something has against its environment.
Examples
- IP54 – Partial rating against dust and light splashing of water for 10 minutes
- IP65 – Full rating against dust and splashing of water for 10 minutes
- IP69k – protection from high pressure jets.
| Solids | Water |
| 0 – No Rating for Protection | 0 – No Rating for Protection |
| 1 – Solid objects > 50mm | 1 – Vertical falling droplets |
| 2 – Solid objects > 12mm | 2 – Vertical falling droplets at 15 degrees |
| 3 – Solid objects > 2.5mm | 3 – Vertical falling droplets at 60 degrees |
| 4 – Solid objects > 1mm | 4 – Splashing water for 10 minutes |
| 5 – Partial protection against dust | 5 – Low pressure jets of water |
| 6 – Full protection against dust | 6 – Powerful Jets of water |
| 7 – Full immersion (1m for 30 minutes) | |
| 8 – Full immersion (1m for longer than 30 minutes) | |
| 9k – Protection against powerful high temperature water jets |

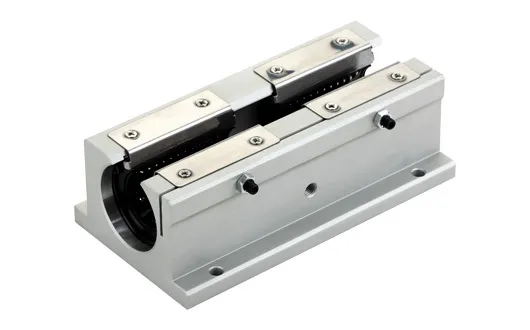

Linear Bushings & Shafting
