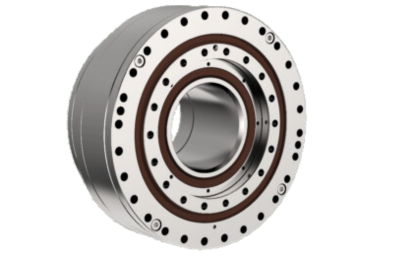

  • Cone Drive – Cycloidal Gearing

    TwinSpin® and DriveSpin® cycloidal gears are designed for high precision, torque density, and weight reduction. The G & GH series provide high tilting stiffness, low friction, and high torque overload capacity with a high precision output bearing. In addition the DS & DSH series provide rotary motion and transfer output torque with high radial-axial load capacity.  Cycloidal gearboxes are ideal for robotics and positioning applications.


    • High Reduction Ratio
    • High Kinematic Accuracy
    • Low Lost Motion
    • High Moment Capacity and Stiffness
    • Compact and Lightweight


    • Dynamic, High Performance Actuator
    • Compact Cycloidal Gear Design
    • High Torsional and Tilting Stiffness
    • Zero Backlash

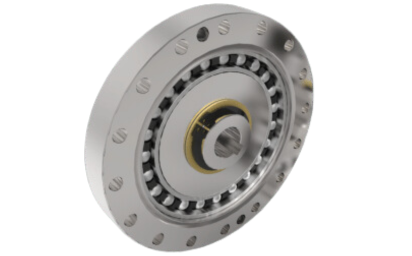

  • Cone Drive – Harmonic Drive Gearboxes

    Ultimate Precision

    Cone Drive’s harmonic gearing is zero to low backlash by design.  It provides high transmission accuracy and can support a high ratio reduction in a single stage with low inertia. The highly accurate, torque dense design makes harmonic gears the perfect solution for ultimate precision motion control applications.

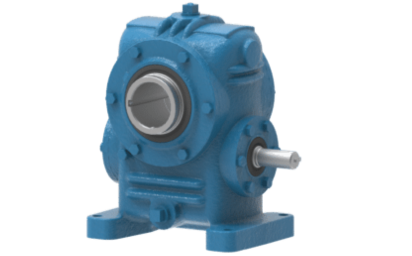

  • Cone Drive – Nema Gearboxes

    Cone Drive’s Double Enveloping worm gearing has been supplying the industry with more torque since 1925.  We fully support our worm with two input bearings allowing you to mount the gearbox in any position and increase your bearing life.  Cone Drive’s worm geometry provides more torque in a smaller package resulting in space and cost savings.

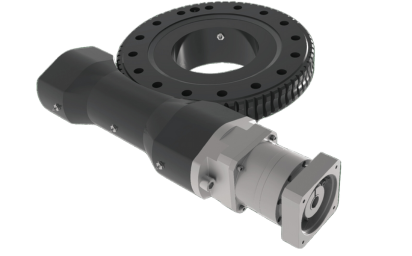

  • Cone Drive – Slewing Rings & Bearings

    Cone Drive’s slewing drive and slewing bearing technology provide a large ratio in a single stage of gearing.  For additional torque, we offer the option of adding an inline planetary gear to create a double reduction slewing drive.  The slew bearings and drives are assembled into a low profile, self-retaining, and ready-to-install housing, optimized for weight and performance.  Our highly adaptable slewing gearboxes feature strong shock resistance, long life performance, and smooth rotation.

    As a global slew drive and slew bearing manufacturer, we have the capability to provide custom solutions for specific applications.  We have a long and proud engineering history that started in 1925 and have worked to provide the most cutting-edge gearing technology ever since.

  • Cone Drive – Stainless Gearbox

    Stainless Steel Gearboxes for Hygienic Torque

    The Series F Stainless Steel gearbox provides you Cone Drive’s gearing technology in a stainless steel package. The smooth contours of the housing allow fluids to wick away preventing bacteria from forming on the surface. When your application demands strict hygienic performance, look no further than Cone Drive’s stainless steel Series F gearbox.

  • Neugart – Custom Gearboxes

    As one of the leading manufacturers of planetary gearboxes, we are always searching for new solutions that benefit our customers. That’s why we also develop, design and produce custom gearboxes in the form of planetary, spur, and bevel gearboxes. Our experienced engineers always find the optimal solution for your application. Close collaboration with our customer is important to us even in the early development phase. No matter what the special requirements of your application, we can develop a custom made gearbox to match your needs.

  • Neugart – Economy Gearboxes

    The planetary gearboxes and right-angle gearboxes from the Economy Line are attractively priced power packs in all variations. They are lightweight, powerful and employ low-friction bearings. Their construction and technical design make them ideal for demanding production cycles.

  • Neugart – Hygienic Gearboxes

    Our HLAE is unique: It is the world’s first planetary gearbox in a certified hygienic design – flexible without a radial bolt, powerful and yet easy and quick to clean. It was developed specifically for applications in sensitive areas such as pharmaceuticals, cosmetics and food.

    • IP69k
    • FDA certified Materials
    • NSF H1 Lubricant
    • Radial Shaft Seal
    • No Radial Bolts
    • 3-A RPSCQC Certification
  • Neugart – Precision Gearboxes

    These precision gearboxes are created for the highest accuracy in terms of torsional backlash and rigidity. They also impress with high IP protection class ratings, load capacity and versatility. In addition, these planetary gearboxes are available with different types of gearing to meet almost any application specification.
