Rxvp = vacuum pressure

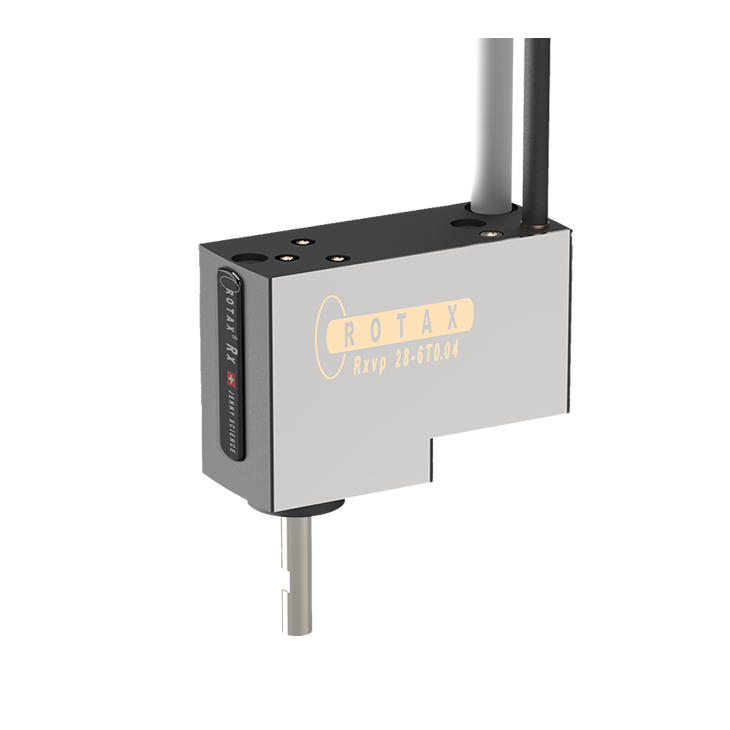

The ultra-compact ROTAX® rotary motor axis with a vacuum gripper picks up parts within a typical weight range of 1 mg to 500 g. Many commercially available vacuum grippers can be attached to the standardized M5 threaded hole. The ROTAX® rotary motor axes can also be directly mounted to the ELAX® linear motor slides or the LINAX® linear motor axes.

The highly precise rotary motor axis rotates endlessly 360° with a resolution of 64,000 increments per revolution. They can be arranged next to each other with a spacing of only 30 mm. When placed opposite each other, the minimum distance between ROTAX® shafts is also only 30 mm. This saves space, and the system becomes more compact.
